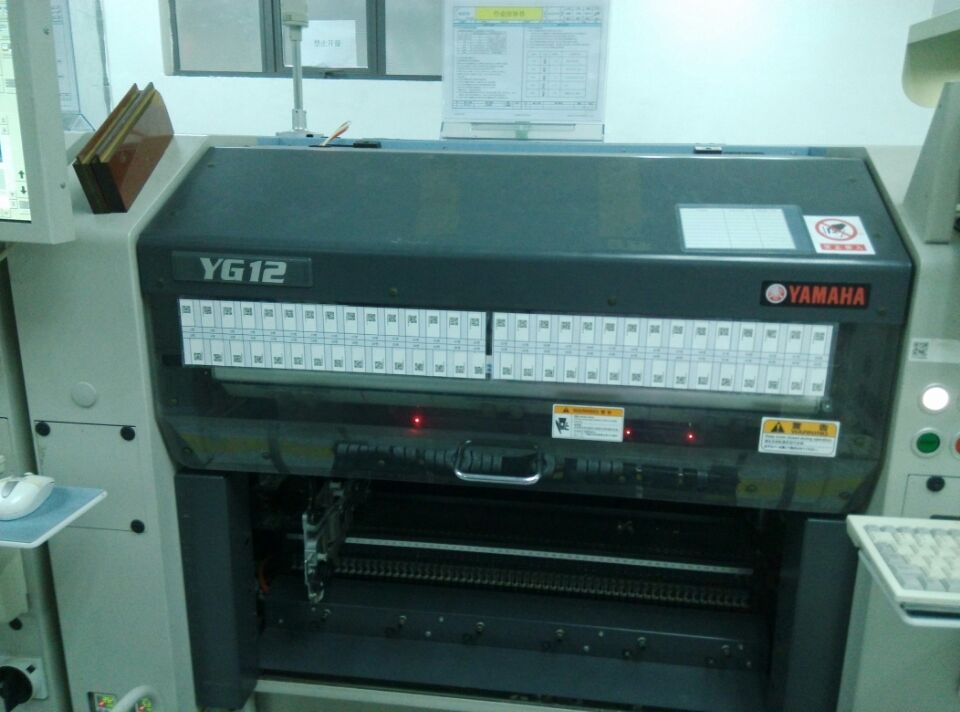

MODEL YG12(TYPE:KJV-000)
PCB SIZE L50×W50mm ～ L510×W460mm
贴装效率
(最佳条件) 36,000CPH/CHIP(相当于0.1秒/CHIP)
贴装精度
绝对精度(μ+3σ):±0.05mm/CHIP
重复精度(3σ):±0.03mm/CHIP
对象元件 0402(mm系名称)～□32*mm元件 (注1)*2010年1月开始对应
元件种类 60种(最大、换算成8mm卷带)
电源规格 三相AC 200/208/220/240/380/400/416 V ±10% 50/60 Hz
供气源 0.55MPa以上、清洁干燥状态
外形尺寸
(注2) L1，254×W1，440×H1，450mm(盖板上方)
L1,464(延长传送带端)×W1,440×H1,450m(盖板上方)
主体重量 约1,340kg
Model YG12 (TYPE: KJV-000)
PCB substrate:
L50 × W50mm ~ L510 × W460mm
Mount efficiency
(Optimum conditions)
36,000 CPH / CHIP (equivalent to 0.1 seconds / CHIP)
Placement accuracy
(Standard components of the Company)
Absolute accuracy (μ +3 σ): ± 0.05mm/CHIP
Repeatability (3σ): ± 0.03mm/CHIP
Object element
0402 (mm Department name) to □ 32 * mm element (Note 1) * January 2010, corresponding
The type of components
60 (converted 8mm Tape)
Power Specifications
Three-phase AC 200/208/220/240/380/400/416 V ± 10% 50/60 Hz
Gas supply sources
The 0.55MPa more, clean and dry state
External Dimensions
(Note 2)
L1, 254 × W1, 440 × H1, 450mm (cover above)
L1, 464 (extended belt end) x W1, 440 x H1, 450m (cover above)
The main weight
About 1,340 kg
